How Mexela Tests Proxy Guides

Mexela reviews a proxy guide by separating the connection into observable layers, comparing a direct baseline with the proxied path, and recording only what the available evidence can support. The method is designed to find configuration and troubleshooting errors; it does not turn one successful request into a universal claim about privacy, access, location, reputation, speed, or legality.

This page describes the editorial method used for technical guidance in the Mexela Proxy Journal. It is not a certification program or a promise that every reader will reproduce the same result. For ownership and sourcing rules, see About the Mexela Proxy Journal and the Editorial Policy.

The test question comes first

Before running a command, the reviewer writes down the narrow question. Examples include: does this client accept the documented proxy URL shape, does authentication reach the proxy, does an HTTPS request establish a tunnel, and does the destination observe the proxy egress address? A narrow question determines which evidence matters and prevents unrelated observations from being promoted into conclusions.

The reviewer also records the relevant client or runtime, version when known, operating system, proxy protocol, authentication method, destination, timeout, and time of test. If a live network is unavailable, the scope is reduced to what can still be checked, such as JSON validity, syntax, option names, link targets, and consistency with primary documentation. The published wording must match that reduced scope.

The seven connection layers

A proxy request is treated as a chain. Each layer can fail independently, and the visible application error may hide the original cause.

Separating the layers improves diagnosis. A proxy authentication failure should not be described as a DNS problem. A destination block is not proof that the proxy transport is unavailable. An application parser error can occur after the proxy and destination both completed their work.

Standard review procedure

1. Define the expected observation. State the exact request, the expected layer, and what would count as success or failure.
2. Check the source. Confirm option names and behavior against current primary documentation when it is available.
3. Validate the example locally. Parse JSON and markup, check code syntax, and review placeholder values before any network request.
4. Establish a direct baseline. Run an equivalent request without the proxy when doing so is safe and useful. Record destination status and timing as context, not as a permanent benchmark.
5. Run the proxied request. Keep the destination, client, timeout, and relevant headers consistent so the route is the main changed variable.
6. Classify the result by layer. Preserve the original error and identify the earliest layer supported by evidence.
7. Repeat proportionately. Repeat an observation when transient network or destination behavior could produce a misleading result.
8. Redact and summarize. Remove credentials, tokens, customer data, private hosts, and unnecessary identifiers before evidence informs public copy.
9. Review the claim. Make sure the published conclusion is no broader than the test question and retained evidence.

Direct baseline versus proxied path

A direct baseline helps separate a destination or local-client problem from a proxy-route problem. If both paths fail the same way, the proxy may not be the differentiating factor. If the direct request succeeds and the proxied request cannot connect to the proxy host, the likely failure sits before destination handling. If the proxy connection succeeds but the destination returns a different status, destination policy or route-dependent behavior may be relevant.

The two requests are never perfectly identical because the network route and observed source address change. Time, caching, load balancing, rate limits, session cookies, TLS negotiation, and destination defenses can also change the outcome. The comparison is diagnostic evidence, not a controlled performance study.

Benchmark record template

Use one row per controlled run and retain the raw timestamps. The template records the client region, target region, observed exit, protocol, destination, run count, median and tail latency, HTTP outcomes, and the decision. Empty values mean not measured; they must never be replaced with estimates.

client_region,target_region,observed_exit,protocol,test_url,run_count,median_latency_ms,p95_latency_ms,http_status_distribution,pass_fail,notes

Download the blank three-page fillable PDF worksheet or the extended CSV template to compare direct and proxied requests, diagnose the seven connection layers and record measured outcomes. Empty fields mean not measured. Retain raw attempts, including errors and timeouts, and remove credentials and customer data before sharing.

HTTP status distribution

Report the count for every observed HTTP status code, plus transport errors and timeouts, rather than presenting only a success percentage.

Pass/fail criteria

Define thresholds before the run. A result passes only when the observed exit matches the target, the required application request succeeds, the error share stays within the stated limit, and both median_latency_ms and p95_latency_ms are recorded from the declared run count. Otherwise mark it fail or inconclusive and explain why.

Evidence we collect

The useful evidence depends on the question. It can include the command or code version, sanitized configuration, proxy protocol, authentication mode, timestamps, timeout stage, original error class, proxy or destination status, redirect path, observed egress IP, and the smallest response fragment required to explain the result. Logs are kept only when they add diagnostic value.

We do not publish working proxy credentials, account tokens, cookies, full customer responses, personal data, or internal infrastructure details. Usernames, passwords, IPs, and hostnames are replaced with obvious placeholders unless a public address is necessary to identify an official documentation endpoint. Screenshots are cropped or redacted with the same rules as text evidence.

How code examples are checked

Each example is first checked as source material. JSON records must parse strictly. JavaScript examples can be extracted and passed to the Node.js syntax checker. PHP files are linted with the available PHP runtime and kept compatible with the production version. Shell commands are reviewed for quoting, placeholder use, and unintended side effects. HTML links and headings are checked by content contracts.

A syntax check answers whether the example parses, not whether every dependency is installed or every server will accept the request. When a network check is possible, the reviewer distinguishes native proxy configuration, environment variables, and custom agents. For example, Node.js connection pooling and agent behavior are checked against the official HTTP Agent documentation, while library-specific options are checked against that library’s own documentation.

Examples favor explicit timeouts and error reporting. Retries are added only when the guide explains what is retryable and prevents an uncontrolled loop. Credentials are never embedded as real values. The final article should help a reader replace placeholders without teaching them to print secrets into logs.

Using the Mexela Proxy Checker

The Mexela Proxy Checker shows the IP address and request details observed by Mexela for the client opening that page. Open it in the same browser or application before and after enabling the proxy, then compare the observed IP and UTC time. It is not an endpoint-submission or batch-testing service, and this observation alone does not establish country, DNS, WebRTC, anonymity, or destination acceptance. The companion proxy checker interpretation guide explains how to prepare the client, interpret the observation, and continue diagnosis.

A checker result is one observation from one environment and time. A working result does not establish that the same endpoint will work in a browser extension, server runtime, mobile application, or third-party destination. A failed result should be classified with the seven layers before the proxy is replaced. The Proxy Troubleshooting Guide provides a broader decision path for timeouts, authentication failures, HTTPS problems, DNS behavior, and destination rejection.

What this method does not prove

The method does not guarantee anonymity. An observed proxy egress IP does not measure browser fingerprinting, account identity, cookies, application telemetry, DNS behavior, WebRTC paths, or every protocol on a device.

It does not guarantee destination acceptance. Websites and APIs can apply rate limits, account rules, network reputation systems, geographic policies, automated defenses, and terms that vary by request and time.

It does not guarantee geolocation accuracy. IP location databases can disagree, lag after routing changes, or represent a network registration rather than a precise physical location.

It does not guarantee a favorable IP reputation. Reputation is destination-specific, changes over time, and can depend on network ownership, history, traffic patterns, and signals outside the proxy address.

It does not guarantee performance. A sample records conditions at that moment. Distance, congestion, proxy load, destination latency, TLS setup, local connectivity, and application concurrency can change later results.

It does not establish legal suitability. Authorization, contracts, destination terms, privacy duties, data rights, and applicable law depend on the workflow and jurisdiction. The reader remains responsible for that assessment.

Review checklist before publication

• The headline and opening answer match the tested question.
• Software and protocol claims use primary sources where available.
• Code, JSON, HTML, and PHP receive the applicable local checks.
• Proxy protocol, authentication, timeout, and destination assumptions are visible.
• Errors are assigned to the earliest layer supported by evidence.
• Examples contain placeholders and evidence contains no secrets.
• A successful request is not described as proof of anonymity or universal access.
• Commercial links follow a useful explanation and do not replace it.
• Images match the subject and are not presented as measured evidence.
• Internal links lead to the glossary, checker, troubleshooting, or related integration that genuinely helps next.
• Metadata and structured data describe the visible page accurately.
• The modified date changes only for a material revision.

Updates and corrections

A guide is reviewed again when a supported client changes its proxy interface, primary documentation changes, a reproducible correction is received, a source disappears, a test contract fails, or the existing explanation no longer matches the live service. Stable protocol background may not need frequent rewriting, but commands and library options are more sensitive to version changes.

Correction reports should include the article URL, exact example or claim, environment or version, observed result, and a primary source or minimal reproduction when possible. Use the route described in the Editorial Policy. The team checks related guides for the same issue and updates the visible modified date when the correction changes meaning.

How to use this methodology as a reader

When a proxy fails, start by naming the layer instead of changing several settings at once. Keep one known destination and one simple client, verify the endpoint format, test transport and authentication, then add HTTPS, application behavior, concurrency, or rotation. Use the Proxy Glossary for consistent definitions and the troubleshooting guide for next actions. This controlled sequence produces evidence that is easier to explain, repeat, and correct.

A measured route case study

See the dated Mexela proxy timing and sampled stability case study for a reproducible owned-target procedure, per-route median and p95 results, retained failed attempts, and a downloadable sanitized observation record. Its fixed observation window describes selected requests; it does not establish continuous uptime or performance for every client, location, destination or plan.

For client-specific setup and bounded observations, see the proxy client compatibility matrix. It separates dated route checks from documented configuration and untested behavior; results from one environment and destination do not establish compatibility for every workload.

How version-bound example rechecks work

The dated guide verification registry inventories all 100 published WordPress records, including 43 with code blocks or the configuration generator. It records executable-block fingerprints separately from surrounding prose. A changed example or a new observed upstream version requires a new execution receipt; an unavailable version remains unknown.

On 16 October 2026, the generator’s PHP cURL and PowerShell outputs were executed against owned local HTTP CONNECT and HTTPS fixtures. Recorded runtimes include PHP 8.4.22/libcurl 8.20.0 and PHP 8.4.26/libcurl 8.22.0 on Windows, plus PowerShell 7.6.7 on Linux. The qualification record retains dates, exact source hashes and cases. Historical related-client observations remain dated; the registry does not certify every code block in every guide.

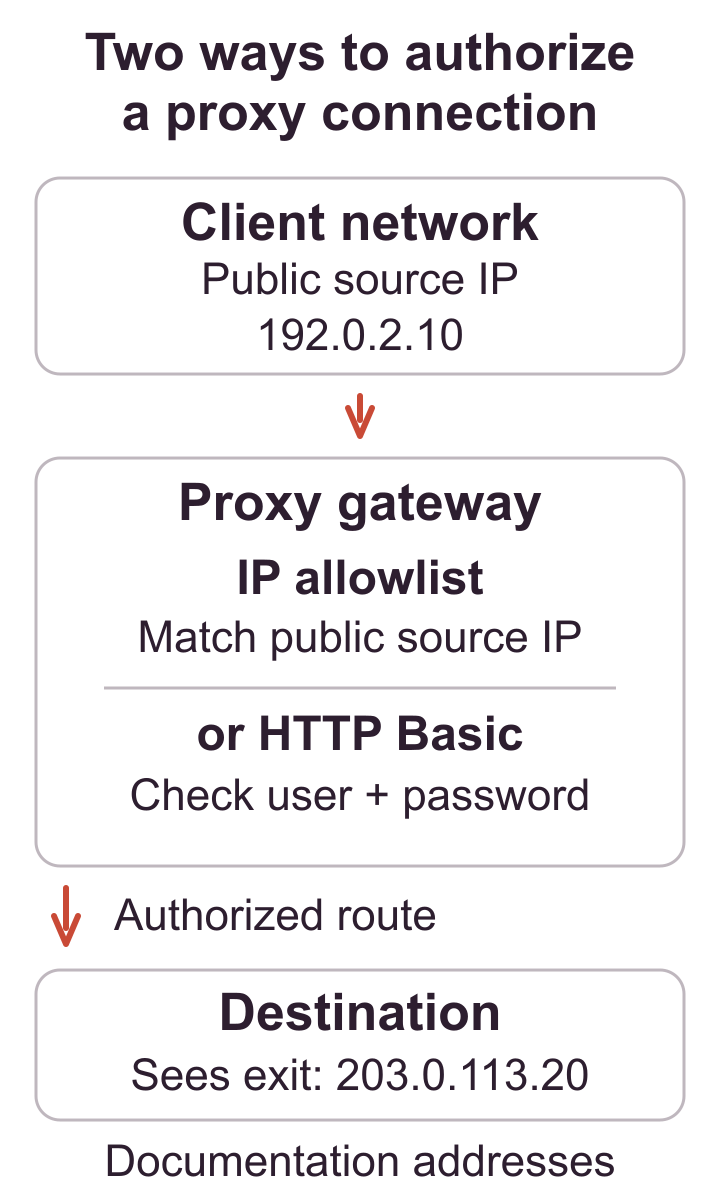

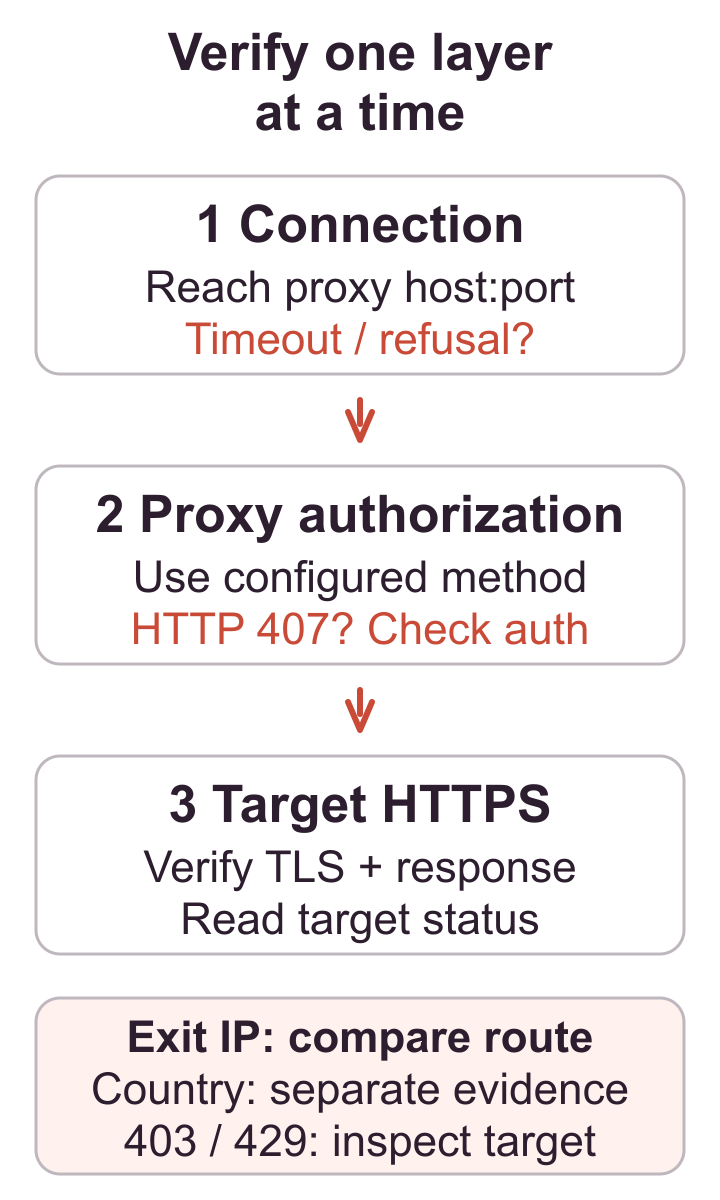

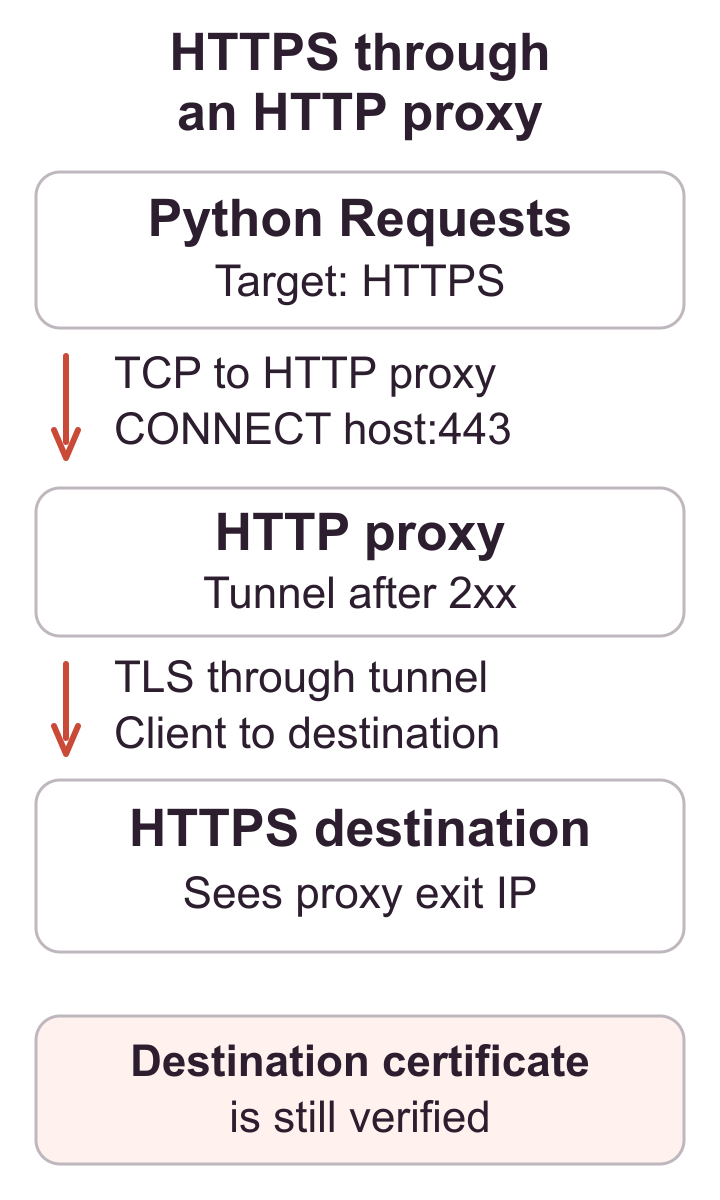

Three reusable technical diagrams: SVG and PNG downloads

Use these original Mexela diagrams in documentation, teaching or an adaptation under Creative Commons Attribution 4.0. Give reasonable credit to Mexela, link the source guide and license, and indicate changes. Do not imply endorsement. This permission applies only to the three listed figures, including their listed renderings; article text, software, third-party materials and the Mexela logo have separate terms.

Download all three diagrams as SVG and PNG · File manifest and checksums · Reuse terms.

Suggested credit: “Diagram by Mexela, CC BY 4.0, source: [the listed guide].” For an adaptation, add a brief description of changes. The full license governs.

Preview the three diagrams and download individual files

Cite the original evidence

The technical resource index groups the dated source-and-test snapshot, reusable diagrams and n8n editor evidence with their original download hashes and scope. Link the source resource when explaining an observation; retain its environment, failures and limits. The diagram license applies only to the listed figures, and public source availability does not grant a new blanket software license.

Support operations case: readable messages and exact proxy details

Scope: this resolved internal support-interface defect affected how staff read existing tickets. It is separate from a customer proxy connection incident.

Before: a legacy name highlighter rewrote prepared ticket markup. It could damage line breaks, links and the boxes used to read proxy details. Early checks compared simplified text and missed the broken HTML structure.

Change: the ticket page now displays the normal prepared message HTML. A narrowly scoped formatter presents internal proxy blocks as multiline textareas while preserving the surrounding message. Checks inspect the actual markup and parsed elements as well as text.

Verified result: the recorded production browser check found 50 nonempty messages. One proxy block retained 21 lines; a separate reply contained 25 actual line-break elements, with intact links. The existing unsent staff draft was preserved. The release also passed 18 local rendering checks and 26 checks with the installed PHP and template engine. A fresh check on 20 October confirmed that the live template and current formatter match the reviewed source; the 18 local rendering checks passed again.

Why this helps: support can read the customer’s original technical details and copy the intended proxy lines without a display highlighter changing the markup. This verifies presentation and draft preservation. It does not establish a customer’s network recovery, a response-time improvement or a service availability result.

Sanitized case evidence

Support operations case: multilingual assistance with originals preserved

Scope: this is an internal support-tooling case about reading and preparing multilingual replies. Machine translation is a reading and drafting aid; staff remains responsible for reviewing a reply and sending it.

Before: the staff ticket page had no integrated local English reading aid for incoming non-English messages. Adding one needed to preserve the original customer text, technical details, private notes and an unsent reply already in the editor.

Change: eligible customer messages receive a separate, read-only English translation in supported desktop Chrome. Original messages remain available. An outgoing companion prepares a translation followed by the exact English draft; staff explicitly chooses whether to copy that reviewed preview into the ordinary reply editor, then sends it with the normal Reply control.

Verified result: the recorded incoming-translation browser check showed eight translated panels alongside 15 original messages. There were no translation panels on staff messages or private notes, and the existing unsent draft stayed unchanged after reload. The outgoing helper passed seven browser scenarios covering editor integration, exact English restoration, technical blocks and obsolete previews. A real local model translated a synthetic English draft into French and placed both languages in the editor after an explicit action. Separate read-only production checks confirmed that the outgoing panel loaded while empty reply drafts remained untouched. No production reply was sent during these checks.

Why this helps: staff can consult an English reading aid while retaining the source wording and exact technical details. The bilingual draft keeps the English reference available for review. Supported browsers and language models are required; initial setup may need a staff action. The checks do not establish translation accuracy for every language, faster ticket resolution or recovery of a customer’s proxy connection.

Sanitized case evidence
